Metering Low-Voltage Transformer

LMZ3D

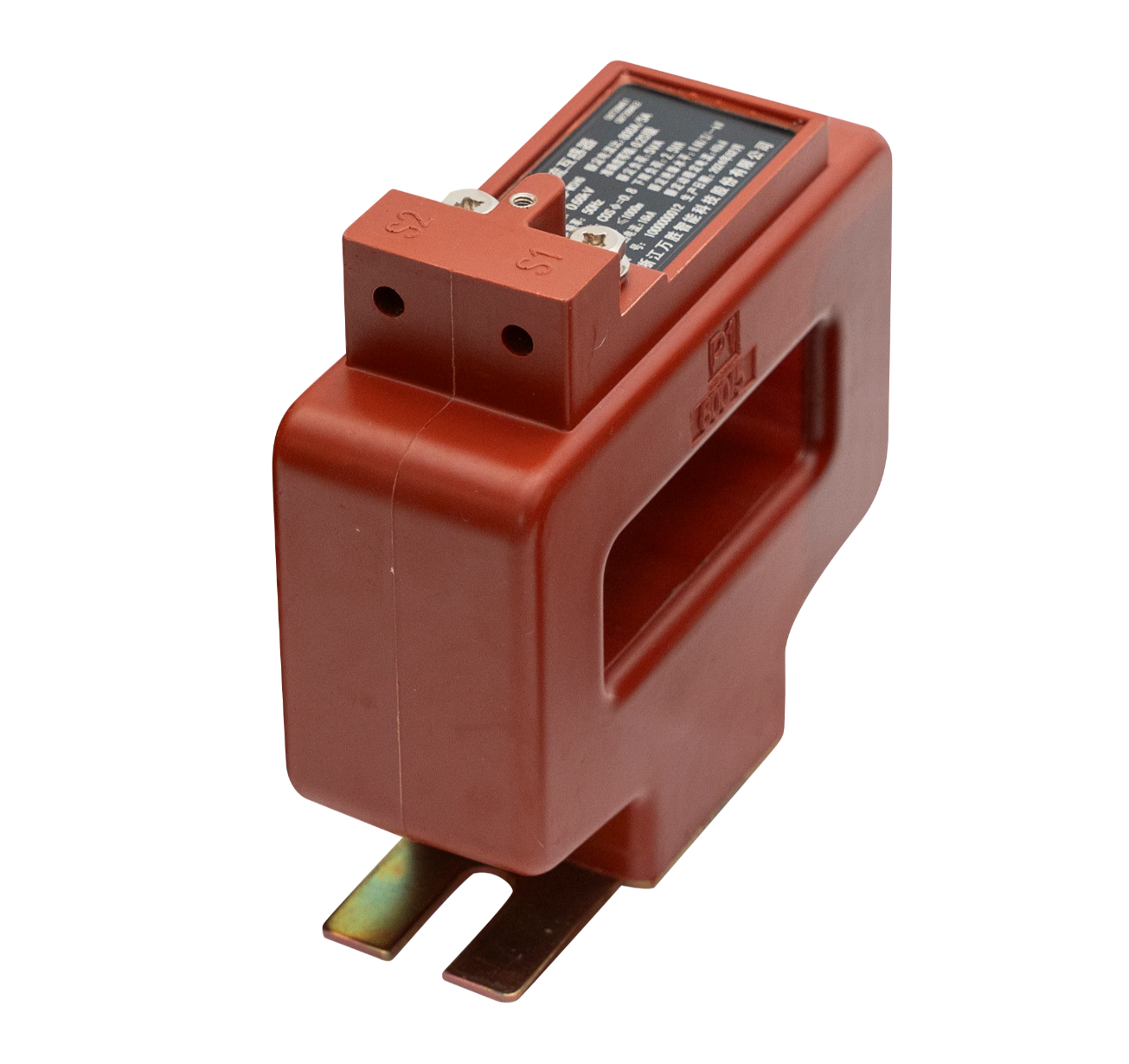

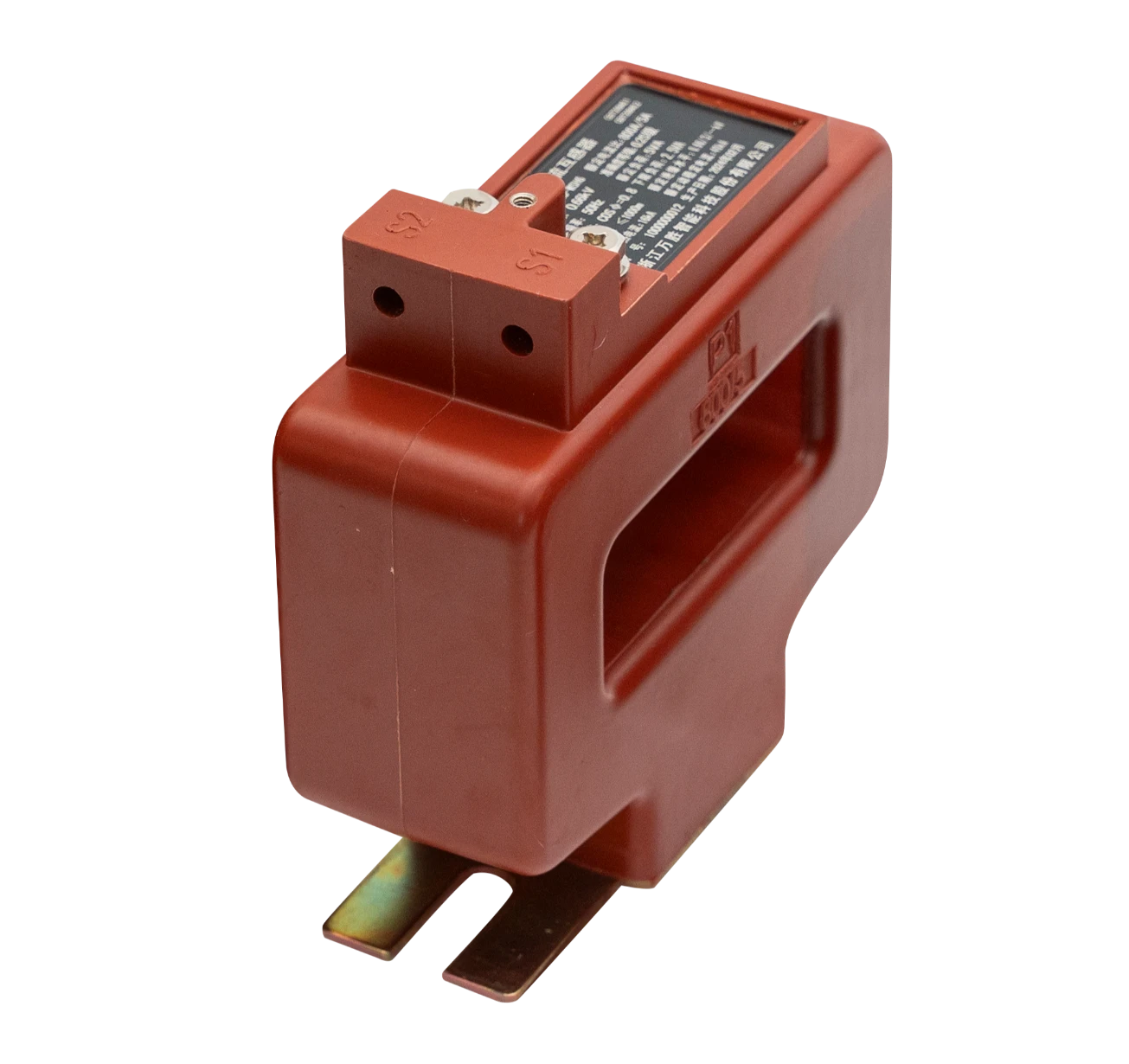

This current transformer is an epoxy resin fully enclosed electromagnetic product, utilizing ultra-microcrystal nano alloy as the magnetic core, with an accuracy that can reach Class 0.2SS. It can provide excellent support for metering energy meters.

wellsun

wellsun

wellsun

Technical parameter

1. Standards Complied with by the Product Performance

Q／GDW 10572.1-2020 Technical Specification for Metering Transformer Part 1: Low-Voltage Current Transformer
2. Rated Insulation Level

0.66kV
3. Rated Frequency

50Hz or 60Hz
4. Rated Secondary Current

5A, 1A
5. Rated Primary Current

600-800A
6. Rated Secondary Load

5VA, 10VA
7. Accuracy Class

Class 0.2, Class 0.5, Class 0.2SS, Class 0.5SS
8. Ambient Temperature

-25℃~+40℃
