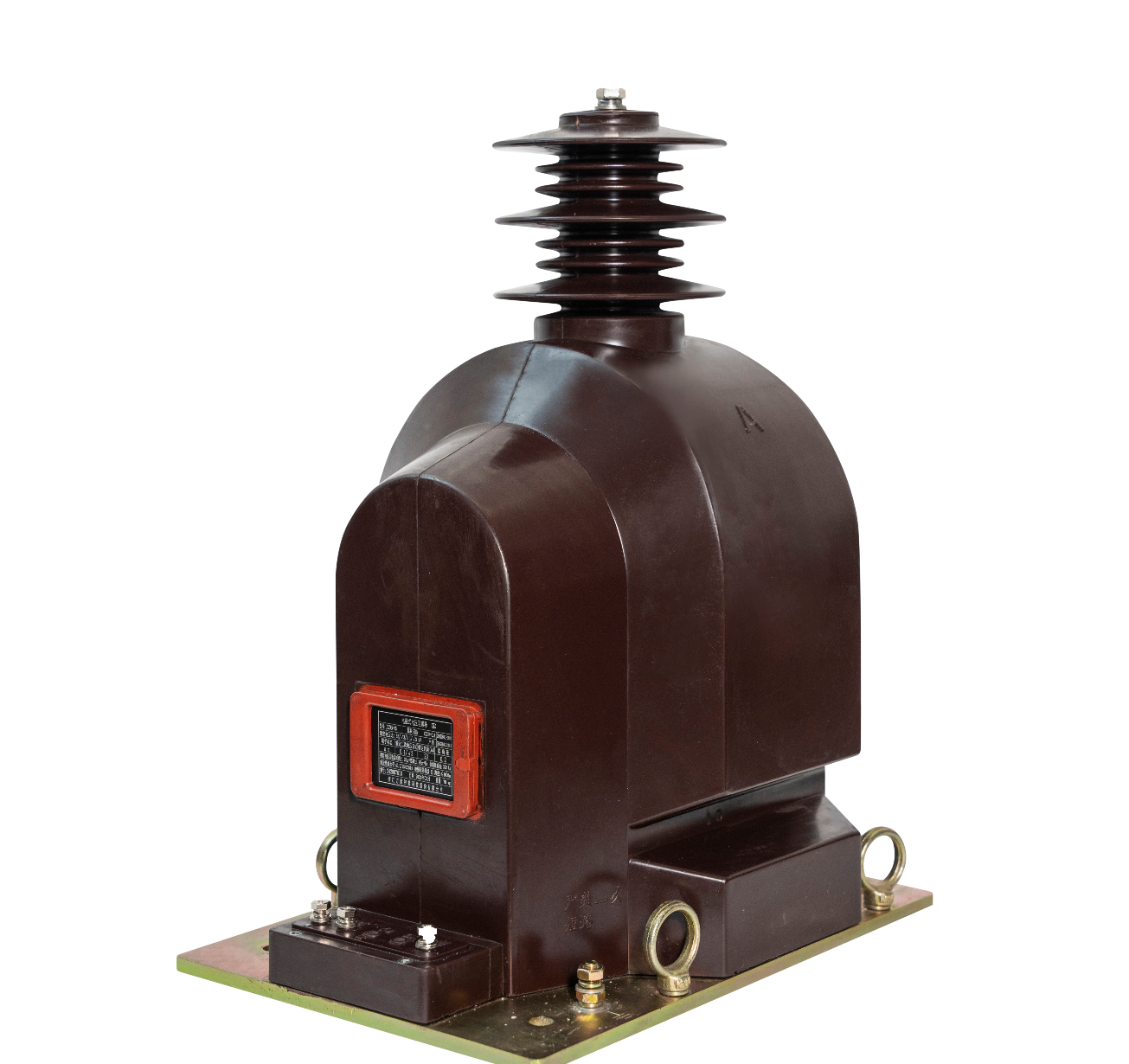

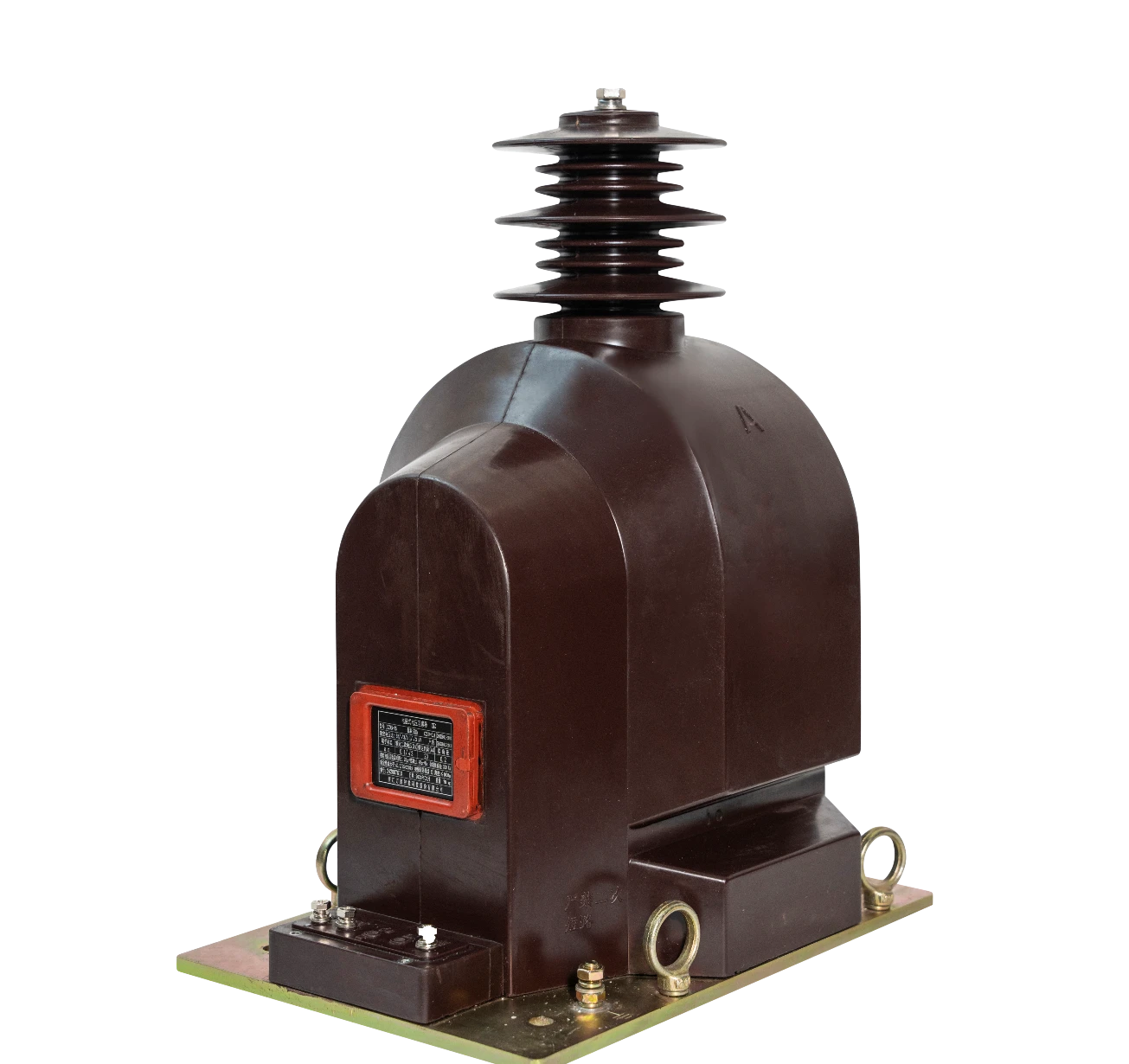

Metering Voltage Transformer

JDZXN-35

This voltage transformer uses the principle of electromagnetic conversion to transform high voltage into low voltage, protecting metering secondary equipment from high-voltage surges. It effectively isolates high voltage from low voltage, ensuring the safety of secondary operating personnel.

wellsun

wellsun

wellsun

Technical parameter

1. Standards Complied with by the Product Performance

Q／GDW 11682-2017 Technical Specification for 10kV-35kV Metering Voltage Transformer
2. Rated Insulation Level

40.5kV
3. Rated Frequency

50Hz or 60Hz
4. Rated Secondary Current

100/√3V
5. Rated Primary Current

35/√3kV
6. Rated Secondary Load

15VA, 20VA
7. Accuracy Class

Class 0.2, Class 0.5
8. Ambient Temperature

-25℃~+40℃
