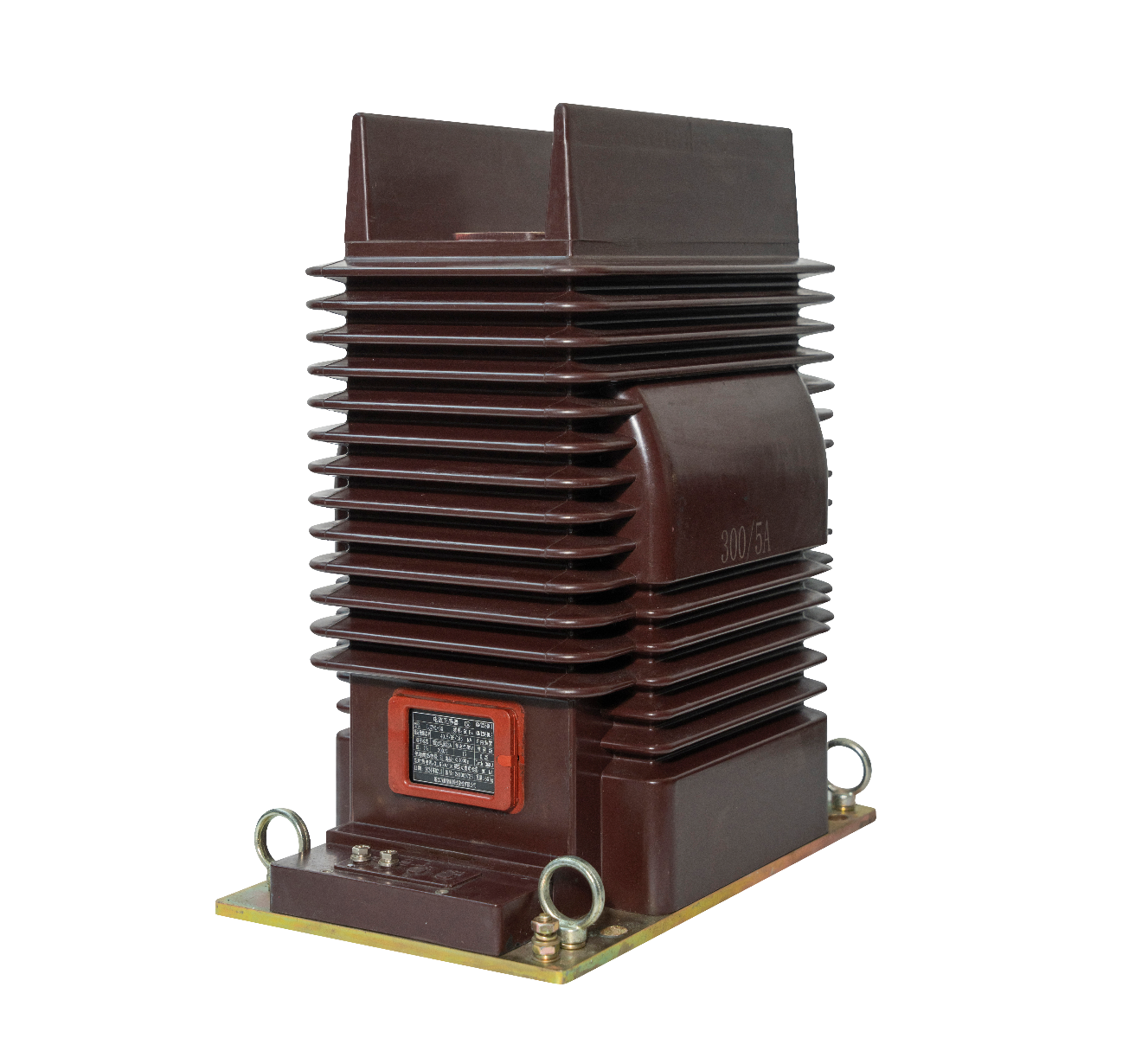

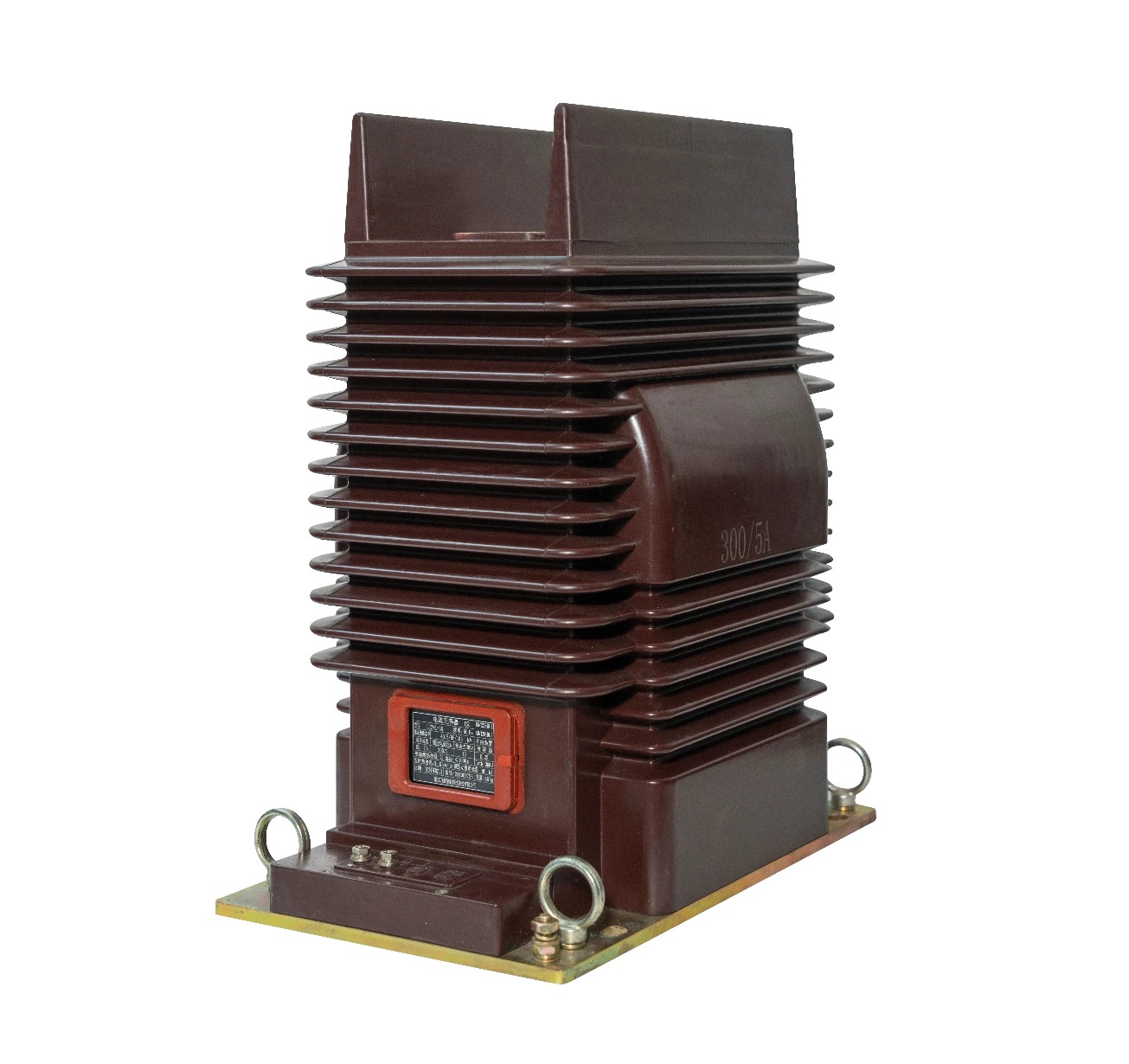

Metering Current Transformer

LJZN1-35

This product has better withstand capability when a short-circuit fault occurs in the system. The partial discharge quantity of the product is extremely low, and it can achieve a partial discharge quantity of less than 10 pC at 42 kV. The service life of the product can exceed 30 years under constant load conditions.

wellsun

wellsun

wellsun

Technical parameter

1. Standards Complied with by the Product Performance

Q／GDW 10572.2-2023 Technical Specification for Metering Transformer Part 2: 10kV-35kV Current Transformer
2. Rated Insulation Level

40.5kV
3. Rated Frequency

50Hz or 60Hz
4. Rated Secondary Current

5A, 1A
5. Rated Primary Current

5-2500A
6. Accuracy Class

Class 0.2, Class 0.5, Class 0.2S, Class 0.5S
7. Rated Secondary Load

15VA, 10VA
8. Ambient Temperature

-25℃~+40℃
