Metering Combined Transformer-JZZY1-10

Metering Combined Transformer

JZZY1-10

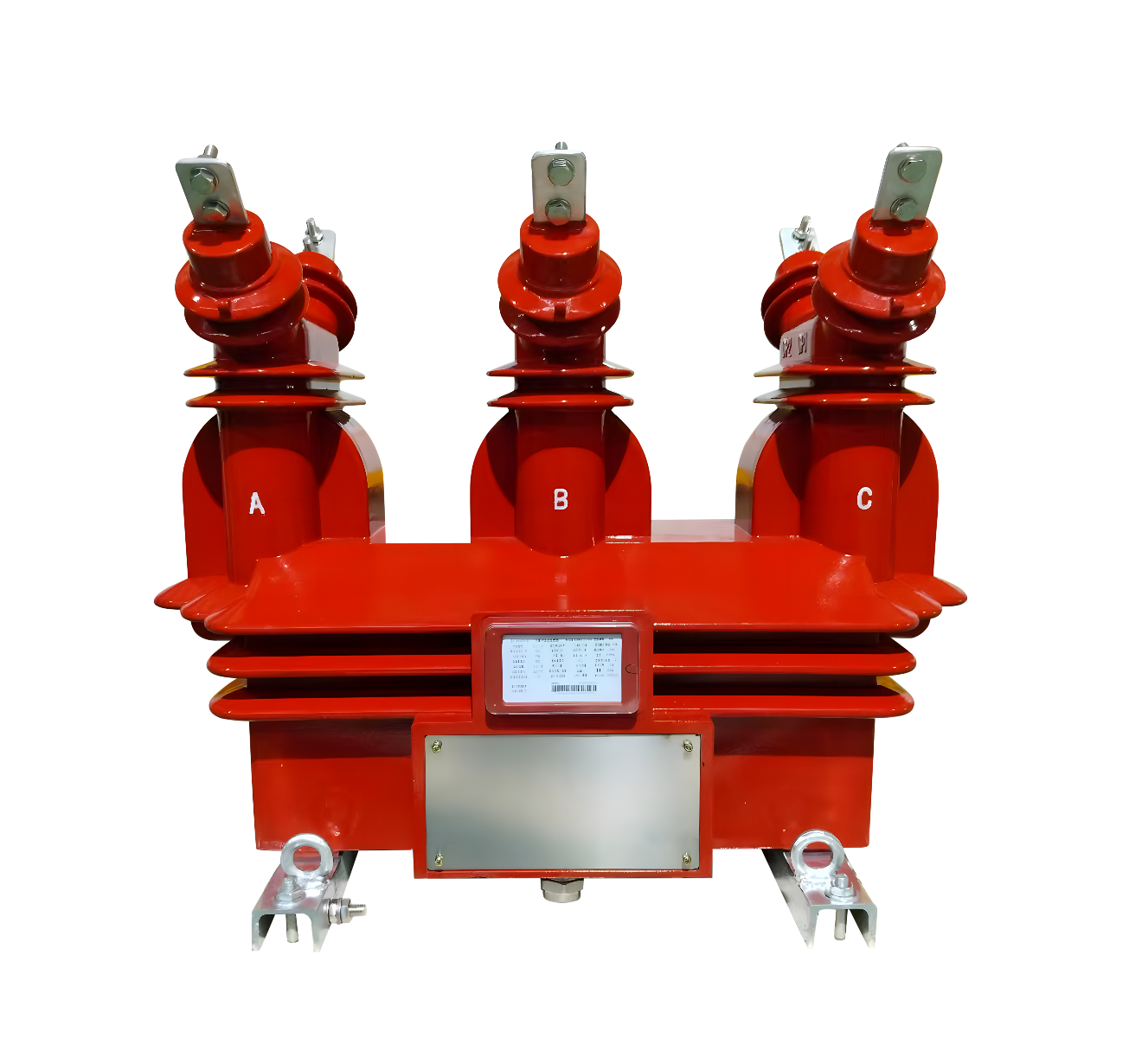

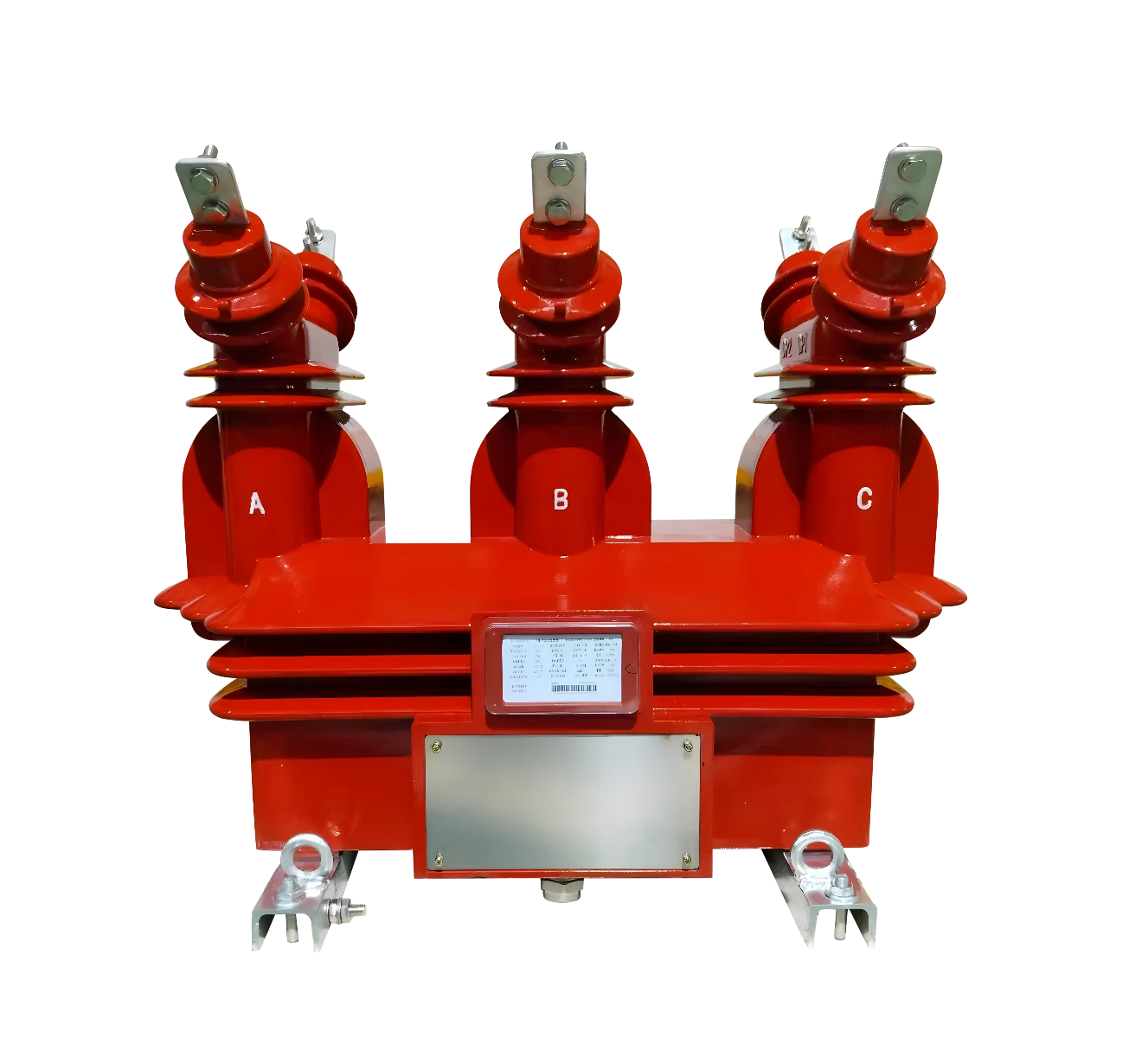

Composed of three single-phase potential transformers (PT) and current transformers (CT), both the PT and CT are electromagnetic types. This type of transformer is suitable for use in a three-phase AC system with a rated frequency of 50 Hz and rated voltages of 6 kV or 10 kV for energy metering. It is installed on the high-voltage side of the power supply transformer. The meter box is equipped with three-phase active energy meters and reactive energy meters, which are used to directly measure the active and reactive energy in high-voltage lines.

Enquire Now

Technical parameter

1. Standards Complied with by the Product Performance

Q／GDW 11682-2017 Technical Specification for 10kV-35kV Metering Voltage Transformer
2. Rated Insulation Level

12kV
3. Rated Frequency

50Hz or 60Hz
4. Rated Secondary Voltage

100/√3V
5. Rated Primary Voltage

10/√3kV
6. Rated Secondary Current

5A, 1A
7. Rated Primary Current

5-800A
8. Accuracy Class

Voltage unit: Class 0.2,
Current unit: Class 0.2S
9. Rated Secondary Load

Voltage unit: 15VA, 20VA,
Current unit: 15VA, 20VA
10. Ambient Temperature

-25℃~+40℃
